Cassette – SPI Series

Features

Toshiba’s SPI series Cassette air conditioners is well-known for its remarkable energy efficiency and performance with low GWP R32 refrigerant in a lightweight, compact body. Toshiba’s new Cassette air conditioners enable temperature conditioning, individual Louvre control, and easy installation, garnering popularity among shops and small businesses owners – an invention that is developed for your lifestyle today, tomorrow and the future.

Superior Coefficient of Performance (COP) The new SPI model achieves top class NEA energy efficiency rating up to 4 tick. Compact & Light Weight

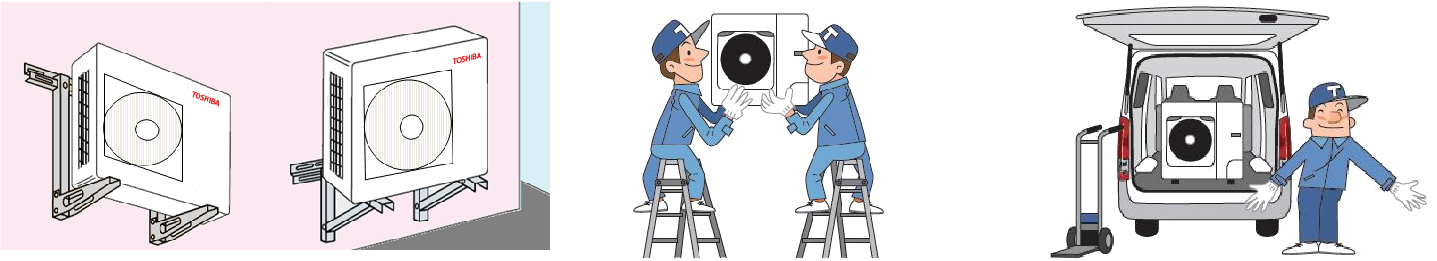

The compact condensing unit of single fan chassis is light weight at 62kg for 5HP. Thus it is easy to transport and install.

Magic Coil

The fan coil unit is equipped with Magic Coil, a special aqua-coated aluminum fin heat exchanger that helps prevent dirt and debris from accumulating on the coils.

Sealed Inverter Box

Inverter box of SPI is fully sealed up in order to avoid malfunction due to sands, dust and small animal.

Comfort

Individual setting of louver position: 3 different swing mode: Standard, Diagonally opposite and Turn-around.

High Lift Drain Pump

The water that condensate is channeled out from the air-conditioner to proper drainage outside the building using a pump.

Default:

Wireless remote controller kit WZ-U01NE

Start/Stop
Changing mode
Temperature setting
Air flow changing
Timer function Either “ON” time or “OFF” time or “CYCLIC” can be set how many 30 min. later ON or OFF is operated.
Control by 2 remote controllers is available. Two wireless remote controllers can operate one indoor unit. The indoor unit can then be operated separately from the two different locations.
Check code display

Optional:

Lite-vision plus remote controller RBC-AMS55E-ES

Wired remote controller with a built in 7-day timer-featuring a new multi-language
LCD display with backlight, energy saving options and a return back function.
Possibility to set and display the room name to easily set-up and monitor the working parameter.
New modern and desirable controller design with menu driven display.
Save mode by schedule timer to optimise energy consumption.
Room temperature display always available.
Two “Hot Keys” (F1, F2) for easy operation of air conditioner functions.
Easy to read layout including display of indoor unit model name and serial number.
Built-in backup power. Settings are kept in memory up to 72 hours in case of power failure.
Remote TA sensor available in controller.
Can be connected to a single indoor unit or a group of up to 8 indoor units.

Specifications

Combination

Type (Combination)	4way cassette
Equivalent Capacity / HP	2	3	4	5
Cooling capacity: Rated / kW	5.0	6.3	9.0	11.0
Cooling capacity: Min – Max / kW	1.2 – 5.6	2.0 – 8.5	4.0 – 11.2	4.0 – 13.2
NEA Tick Rating	4√√√√	4√√√√	4√√√√	3√√√
Refrigerant	R32	R32	R32	R32
Running current, 230V/1/50Hz / A	4.95 – 5.32	6.40 – 7.00	9.20 – 10.05	12.65 – 13.80

Indoors

Model name (Indoor unit)	RAV-GE1801UP	RAV-GE2501UP	RAV-GE3601UP	RAV-GE4201UP
Dimension, HxWxD / mm	256 x 840 x 840	256 × 840 × 840	319 × 840 x 840	319 × 840 x 840
Panel dimension, H×W×D / mm	30 × 950 × 950	30 × 950 × 950	30 × 950 × 950	30 × 950 × 950
Weight / kg	23	29	37	37
Remote controller, wireless	WZ-U01NE	WZ-U01NE	WZ-U01NE	WZ-U01NE

Outdoors

Model name (Outdoor Unit)	RAV-GE1801AP-SG	RAV-GE2501AP-SG	RAV-GE3601AP-SG	RAV-GE4201AP-SG
Dimension, HxWxD / mm	630 x 800 x 300	890 x 900 x 320	890 x 900 x 320	890 x 900 x 320
Weight / kg	37	51	59	61
Recommended Isolator / A	20	20	32	32
